Abrasive Cutoff Machine: CS1-A

The Tridex CS1-A Precision Abrasive Cutoff Machine provides fast, clean cuts with minimal burrs. Its robust design uses high-precision, CNC-grade components for superior accuracy when cutting solid bars and tubes.

Common Applications for Abrasive Cutoff:

Stainless and Nickel Alloy Forging Blanks
Hardened Tool Steel Rod
Tungsten and Molybdenum Rod
Rubber/Metal Extrusions
PEEK and PEEK-SilTM Tube
Dental Alloys
Ceramics
Ferro-Magnetic Alloys

Request a Quote

Product Details

Key Features

Compact, robust design for superior tolerance and finish.

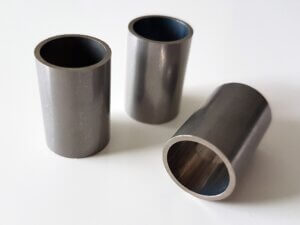

Fast, clean cuts with minimal burrs.
Cuts multiple tubes or bars per cycle.
Easy setup and operation using a color touchscreen HMI.
Programmability and flexibility of changing cut lengths without operator input.
Offered in right- or left-hand configuration to create a work cell with one operator running two machines.
All stainless construction, including a full-access stainless splash guard and coolant tank.
No painted surfaces.
Fixtures and jobs can be changed in one minute.
Thin, inexpensive rubber bond wheels never go dull or need sharpening, minimizing kerf loss.
Mitsubishi PLC Control System.
All feed components are protected from the coolant.
Leaves parts with a smooth surface finish, 0.2 – 0.4 RA typical.
Can also use diamond and CBN wheels.

Specs

Cutting Capacity – Diameter: Standard .012” (0.3mm) to 1.25” (32mm); optional 2.5” (63.5mm)
Cutting Capacity – Length: min .25” (6mm), no maximum
Positioning Accuracy: 0.0004” (0.01mm)
Traverse Speeds: 600 inches/min (15,240 mm/min)
High Precision Spindle: Ceramic Bearings and Air Purge
Direct Drive Spindle Motor: 7.5 HP (5.6kw) Servo Motor – No DriveBelt
Carbide Blade Guides: Low profile with simple adjustment control
Control: Operator pendant color touch screen
Fixtures: Quick change – no tools required
Coolant Supply Tank: 50 Gallon (200 Liter) Stainless Steel
Safety Standards: Meets CE and ISO-13849.1
Air: 4CFM @ 80PSI
Power: 460V, 60Hz standard. 380V, 50Hz optional
Machine Footprint: 137 x 79 x 79 inches (3,480 x 2,000 x 2,000mm)
Machine Weight: 3,300 lbs (1,497kg)
