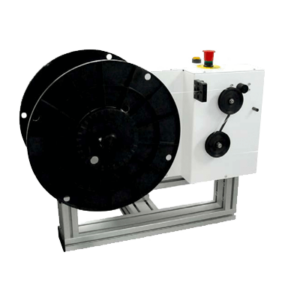

The Accu-Feed LTD Low Tension Dereeler is designed to provide constant strain, low tension payout of tubing to an Accu-Cut or other machine for high volume, critical tolerance manufacturing operations. It features a low mass, nonstatic proportional speed dancer arm. The LTD is torque-limited for safety and does not require any electrical connection to its host machine.
Key Features
- Designed for high-volume, critical tolerance manufacturing
- Precision ball-bearing construction for low dancer arm friction
- Torque-limited for safety
- Communicates with Accu-Cut machines
- Incorporates static-reducing technology for cleanliness
Specs
- Speed: 120rpm
- Maximum OD: 0.25” (6.4mm)
- Maximum spool diameter: 17.75” (0.45m)
- Maximum spool width: 10” (0.25m)
- Maximum spool weight: 12 lbs. (5.4kg)
- Power: 100-240VAC at 50/60Hz
- Dimensions: 30” x 15”
