Micro Blasting

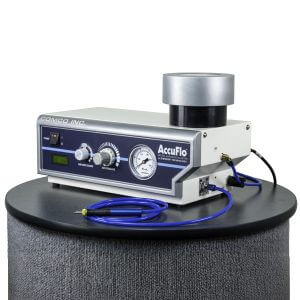

AccuFlo
A New Name in Blasting Precision
The AccuFlo is our first micro-abrasive blaster equipped with patented Simoom Technology featuring a redesigned modulator, aerodynamic tank and PowderGate valve. The added flexibility and enhanced powder flow control allow for a wider range of applications.
Durability in Harsh Environments
The AccuFlo was designed to consistently deliver a universal abrasive stream in the harsh environment of abrasive media. AccuFlo works with abrasives as small as moondust and as hard as diamonds so that operators can increase efficiency while reducing the risk of damage to high-value parts.
Product Details
Key Features
Building on over 40 years of MicroBlasting experience, AccuFlo represents the best of what is possible. It incorporates advancements in abrasive mixing, durability and operator experience.
Superior mixing technology
Simoom Technology is our patented method of consistently and efficiently mixing air and abrasive. This breakthrough technology creates a more streamlined flow path and reduces turbulence, providing better control over the abrasive stream–and allows your AccuFlo to work with a wider range of abrasive.
More durability under duress
Our PowderGate Valve was designed to work with AccuFlo in harsh production environments. This scaled-down version of our traditional pinch-valve fits neatly in the abrasive mixing chamber and features a more direct flow path and easy access.
PowderGate is rated to last 250,000 blast cycles in a production environment without maintenance. A traditional pinch valve lasts about 10,000.
Reduce Fatigue
Our ComfortGrip Handpiece stylus provides the ultimate combination of comfort and performance. ComfortGrip has a cushioned, natural feel and is less resistant to motion than standard handpieces so you can keep blasting without getting tired.
Specs
- Shipping Weight: 30 lb (13.6 kg)
- Dimensions:
- AF10 Standard Tank: 10.5 in H x 17.5 in W x 10.0 in D (26.7 cm x 44.5 cm x 25.4 cm)
- AF10-T Tall Tank: 15 in H x 17.5 in W x 10.0 in D (38.1 cm x 44.5 cm x 25.4 cm)
- Air Pressure: 10-125 psi (0.7 – 8.6 bar)
- Powder Capacity:
- AF10 Standard Tank: 1 L
- AF10-T Tall Tank: 2 L
- Nozzle Sizes: Round 0.15 – 0.60 in diameter (.38 mm- 1.5 mm). Other shapes and sizes available
- Inlet Air Pressure: 70-145 psi. (4.8 – 10 bar)
- Air Volume: Depending on nozzle size and air pressure, consumption is typically 0.2 – 7.5 scfm (94 – 3540 cm3/s)
- Power:
- 115 V, 60 Hz, 40 W
- 230V 50 Hz, 40 W
