Material Removal

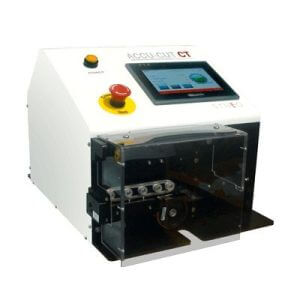

Large Automated Medical Tubing Cutter: Accu-Cut CT & CTXL
MMT’s Accu-Cut CT and CTXL deliver tube cutting automation for large-diameter medical tubing, with the CT built on the proven Accu-Cut 202L platform. This automated medical tubing cutter handles part diameters from 0.400 in to 0.900 in, pairing high-traction feed with high-power indexing to reliably cut heavy-bodied and slick materials. The result: clean, precise cuts your team can count on alongside the flexibility to configure the machine around your specific application.
Product Details
Key Features
- Delivers accurate lengths on a wide range of materials.
- Fast, repeatable setup with changeable belt-drive guides.
- Optional CleanAir Deionizer reduces static and provides easier handling.
- Thoroughly developed for heavy-bodied and slick materials.
- Many customization options and integrations are available.
Specs
- Power: 100-230 V, 50/60 Hz, 1 A
- Air: 30-100 psi, 1-5 cfm
- Dimensions: 15 in W x 20 in D x 14 in H (38.1 cm x 50.8 cm x 35.6 cm)
- Weight (standard machine): 50 lb (22.7 kg)
- Shipping weight (standard machine): 55 lb (24.9 kg)
- HMI: 7 in high-resolution color touchscreen
- Compliance: CE-certified model available
Commonly Used Materials
- Teflon® PTFE
- Teflon® FAP
- silicone
- polyimide
- Pebax®
- PEEK
- polyurethane
- PVC (vinyl)
- latex and natural rubber
- TPE
- PET
- polycarbonate
- polyethylene
- nylon 6 and small diameter nylon 12
- Delrin® (acetal)
- polypropylene
- optical fiber
- natural suture
- synthetic suture (polyglycolide)
- small diameter glass fiber
- lead and silver bearing solder
