Balloon Forming: BFMS 500 S2
Now 30% Faster than the Original!

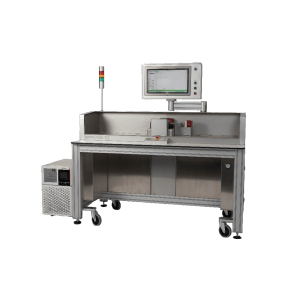

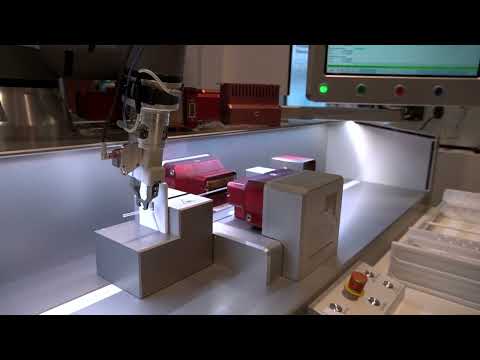

The Split Mold Balloon Forming Machine (BFMS-500-S2) is a medical balloon forming machine built for precise, high-speed balloon catheter forming through full servo control on both the proximal and distal axes. This enables accurate and rapid parison stretching throughout the balloon-blowing process. Each axis features integrated force control and individual load cell systems, allowing forces to be continuously monitored and applied as active control parameters. Standard on every BFMS-500-S2 is our new Rapid Heat Cool Mold Technology, which forms balloons up to 30% faster than the original, while the quick-exchange heat/cool block design makes switching between balloon sizes and shapes fast and effortless.
Available options include:
- Integrated High-Pressure Generation
- Active Pressure Drop Control (APDC)
- Parison Pre-Heating
Product Details
Specs
- Flexible Process Interface for virtual limitless process cycle options on large 19” full-color touch panel interface.
- Fast and strong full servo-controlled axis for repeatable and reliable stretching of the parison materials during the balloon catheter forming process.
- Integrated safety light curtain with intuitive user interaction for safe operation.
- Optional High-Pressure system integrated eliminates the need for a high-pressure factory network or the use of N2-bottles.
- Standard equipped with a safety light curtain with intuitive operator feedback.
- Large 19” full-color touchscreen user interface for easy overview of the machine behavior.
- Standalone Flexible Process Interface software package available for offline development of processes.
- Parison pre-heating system to reduce cycle times.

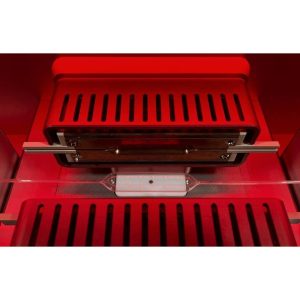

- Quick exchange of mold head (heat/cool block) without the need to manually connect/disconnect water hoses and connectors.
- Rapid Heat and Cool Mold forms balloons up to 30% faster than the original.
Now with Rapid Heat Cool Mold Technology – Up to 30% Faster than the Original.
Related Equipment
Forming
Balloon Forming: BFM 5510 HF
The Interface Catheter Solutions BFM-5510 High Force Balloon Forming Machine introduces advanced capabilities for manufacturing Structural Heart, Large Platform &…
Forming
Pleating & Folding: PTF 120 A
The PTF-120-A is a fully automated machine and can pleat and fold balloons with a length of approx. 100 mm.…
Forming

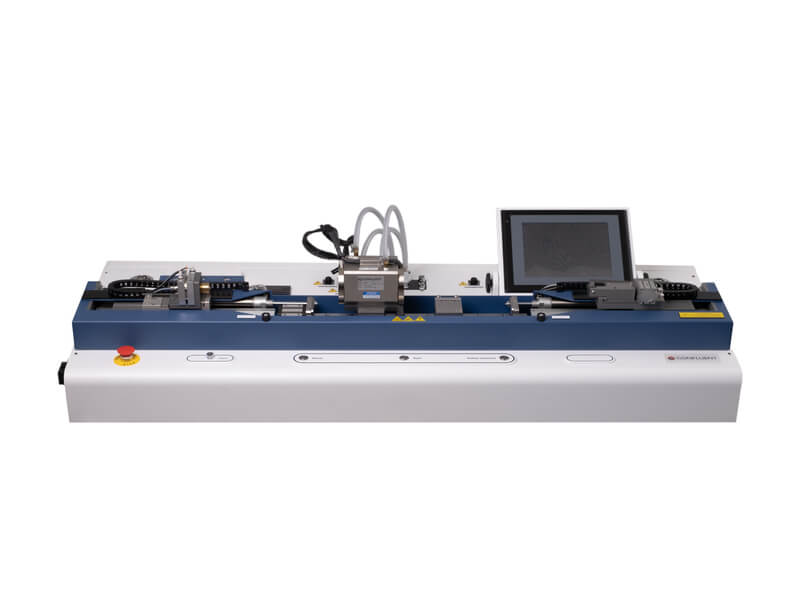

Balloon Forming: BFM-3310
