Burr-Free Electrochemical Cutoff Machine: CS1-E

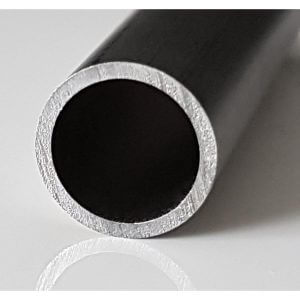

The Tridex CS1-E Burr Free Electrochemical (ECG) Cutoff Machine features burr-free cutting virtually eliminating the need for deburring or other corrective secondary operations, and reducing scrap. Almost all metals can be cut burr-free with ECG making it an attractive option for cutting medical tubing. Increasing efficiency, the CS1-E can cut multiple bars or tubes per cycle only limited by the part diameter.
Product Details
Key Features
- Compact, robust design for superior tolerance and finish.
- Completely burr-free cuts virtually eliminate the need for deburring and other secondary operations.
- Fast, precise cuts.
- Easy setup and operation using color touchscreen HMI.
- Cuts multiple tubes or bars per cycle.
- Programmability and flexibility of changing cut lengths without operator input.
- Offered in right-or-left hand configuration to create a work cell with one operator running two machines.

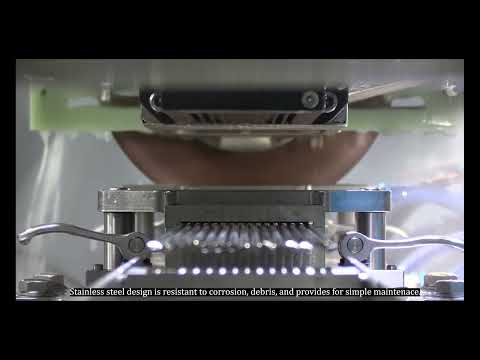

- All stainless construction including full access stainless splash guard and electrolyte tank. No painted surfaces.
- Fixtures and jobs can be changed in one minute.
- All feed components are protected from electrolyte and grit.
- No mechanical adjustments.
Specs
- Cutting Capacity – Diameter: Standard .012 in (0.3 mm) to 3.15 in (80 mm)
- Cutting Capacity – Length: min .100 in (2.5 mm) no maximum
- Positioning Accuracy: 0.0004 in (0.01 mm)
- Traverse Speeds: 600 in/min
- High Precision Spindle: Ceramic Bearings and Air Purge
- Control: Operator pendant color touchscreen
- Fixtures: Quick change – no tools required
- Electrolyte Supply Tank: 50 gal (200 L) Stainless Steel
- Safety Standards: Meets CE and ISO-13849.1
- Spindle Motor: 5 HP direct drive servo motor
- Air: 4 CFM @ 80 psi
- Power: 460 V, 60 Hz standard. 380 V, 50 Hz optional.
- DC Power: 20 V, 300 A standard. 600 A optional.
- Machine Footprint: 137 in x 79 in x 79 in (3,480 x 2,000 x 2,000 mm)
- Machine Weight: 3,300 lb (1,497 kg)
Commonly Used Materials
- Stainless Steel
- Inconel
- Nickel Titanium Alloy (Nitinol)
- Cobalt-Chrome
- Hastelloy
- Other high temperature alloys
- Zirconium
- Sintered Metals
- Magnetic Metals (NdFeB, SmCo)
