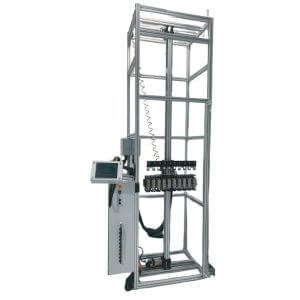

Catheter Laminating Solid Chamber Reflow Machine

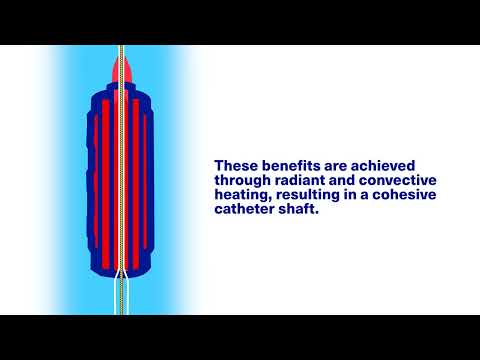

The Cath-Tech (CT) Reflow Chamber is a precision catheter laminating machine designed for consistent, high-quality results. It uses a tightly controlled heated chamber that moves along the tubing at a regulated speed to produce uniform laminations across medium- to long-length catheter shafts.

To improve centering and consistency, the system supports tubing centering guides within the heat zone. It delivers excellent process repeatability, uniformity, and high yield.

Unlike traditional ovens, the CT Reflow Chamber avoids issues like longitudinal elongation and uneven recovery, ensuring more reliable catheter performance.

We can fully customize our Reflow Towers to meet your specific production requirements and performance goals.

Request a Quote

Product Details

Key Features

  • Multi-chamber design.
  • 5 programmable zones with 5 different speeds, distances, and dwell settings at the beginning and end of each zone.
  • Program up to 20 recipes on a standard unit.
  • Additional features include:
    • Load elevators for heights over 108 in.
    • Custom guides and guide holders.
    • Additional security features (light curtain).

Specs

  • Shipping Weight: 750-1200 lb (340-544 kg)
  • Machine Weight: 450-800 lb (204-227 kg)
  • Height: 82-124 in (2082-3149 mm)
  • Width: 50-60 in (1270-1524 mm)
  • Temperature Range: Ambient to 750°F (399°C)
  • Air Pressure: 80-120 psi
  • Compressed Air Requirement: 80 psi
  • Accuracy: (+/-) 2°F (2.78°C)
  • Power Requirements: 208-240 V Single Phase or 3 Phase
  • Product Processing Length: 46.5-90 in (1181-2286 mm)
  • Process Speed: 0.1 mm/sec (0.01 cm/sec) up to 80 mm/sec (8 cm/sec)
  • Product Diameter: 0.030-0.500 in (0.762-12.7 mm) – Custom Options available
  • Single Run Product Capacity: 1-12 parts
  • General Warranty: 1 Year
  • Heat Controls: Independent or simultaneous heater control with support for 1-10 active heaters. Adjustable loading height with configurable elevators for standard machine heights.
  • Gripper assembly: Standard working diameter range: 0.009 in (MIN) to 0.171 in (MAX). Custom holder sizes available upon request.
  • HMI: Program up to 5 zones and store up to 20 recipes.
  • Safety: Use polycarbonate sheeting to protect operator & machine.
  • Product length (on standard machine): Minimum 3.9 in (10 cm); Maximum 90 in (228 cm) – Customizable options available.
  • Frame: Extruded aluminum framing
  • Process Speed: Controlled by servo motor & gearbox for precision control at the lowest speeds
