Automation Systems
Dereeler: Accu-Feed LTD

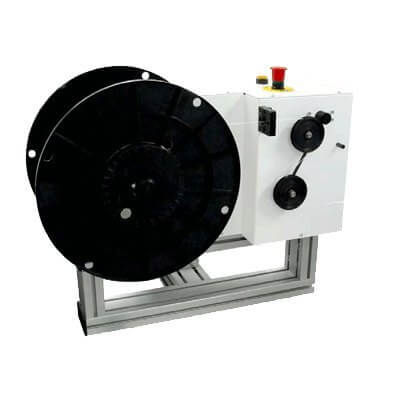

The SYNEO Accu-Feed LTD Low Tension Dereeler provides constant strain, low-tension payout of tubing to an SYNEO Accu-Cut or other machine for high-volume, critical-tolerance manufacturing operations. It features a low-mass, nonstatic proportional speed dancer arm. The LTD is torque-limited for safety and requires no electrical connection to its host machine.
Product Details
Key Features
- Designed for high-volume, critical-tolerance manufacturing.
- Precision ball-bearing construction for low friction in the dancer arm.
- Torque-limited for safety.
- Communicates with SYNEO Accu-Cut machines.
- Incorporates static-reducing technology for cleanliness.
Specs
- Maximum Payout Speed: 120 rpm
- Maximum Matieral OD: 0.25 in (6.4mm)
- Spool Shaft Diameter: 0.63″ (16 mm)
- Maximum spool diameter: 17in (432 mm)
- Maximum spool width: 10 in (254 mm)
- Maximum spool weight: 12 lbs. (5.4kg)
- Standard Spool Adapter Spool Length: 15 in (381 mm)
- Power: 100-240VAC at 50/60Hz
- Dimensions: 26 x 11 x 16 in (660.4 mm x 279.4 mm x 406.4 mm)
- Machine weight: 20 lbs. (9 kg)
