Automation Systems
Guidewire Feeding: Accu-Feed AGF

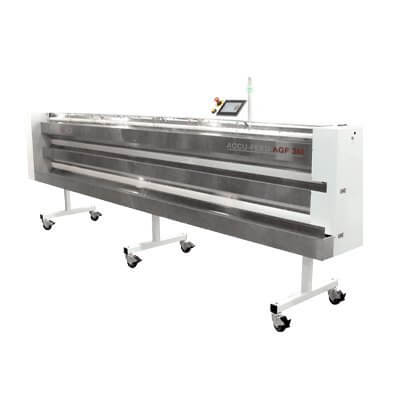

The SYNEO Accu-Feed AGF Advanced Guidewire Feeder is the ideal wire-feeding solution for centerless grinding. It improves production speed, accuracy, and quality while delivering a substantial return on investment. This medical centerless guidewire grinder is available in three lengths (two, three, and five meters), and optional wheels simplify installation. Materials processed include nitinol and stainless steel wires.
SYNEO’s Accu-Feed solutions provide fully automated feeding of tubes, wires, and odd-form components to link multiple manufacturing processes. SYNEO wire feeding systems are deployed around the globe, providing automated feeding and handling systems for centerless grinding applications and providing manufacturing managers with further opportunities for process optimization and time savings for centerless grinding processes
Product Details
Key Features
- Full-color, touch-screen HMI with downstream communication capability.
- Integrates both feeding and binning systems on one chassis.
- Processes part lengths from 1 m to 5 m.
- Part exchange time capability of 5 seconds or less (depending on part length and application).
Specs
- Power: 100-230 VAC, 50/60 Hz, 1A
- Air requirements: 30-100 PSI, 1-5 CFM
- Dimensions (W x D x H):
- 2M: 105″ x 25″ x 52″
- 3M: 145″ x 25″ x 52″
- 5M: 225″ x 25″ x 52″
- HMI: 7-inch high-resolution color touchscreen.
- CE-certified model available.
Commonly Used Materials
- Straight lengths (stick form) of Nitinol and stainless steel wire.
