Testing & Inspection

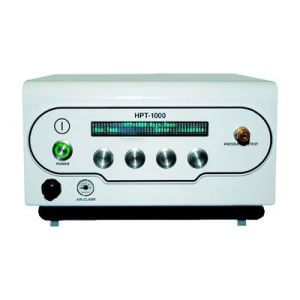

Hydraulic Pressure Tester: HPT-1000
The Hydraulic Pressure Testers provide critical hydraulic test functions for balloon catheters and components, including tubing and balloons. The HPT-1000 is easily programmable with a high visibility vacuum florescent display and four navigation keys.
Product Details
Key Features
- Tests include burst, leak, fatigue and compliance
- Multiple pressure ramp options including linear, stepwise, fatigue and custom
- Robust mechanical design that can withstand extended use
- Simple to operate and easily programmable with storable test protocols
Parameters Include
- Initial pressure
- Test pressure
- Relaxation pressure
- Incremental pressure
- Cycle high pressure
- Maximum pressure
- Burst pressure drop
- Leak rate
- Settling time
- Hold time
- Total test time
- Ramp-rate limit
Specs
- Dimensions: 12.2” W x 18.2” D x 6.0” H 310 mm x 462 mm x 152 mm
- Electrical Power: 110-220 VAC 50-60 Hz, 30 Watts
- Air Supply: 105 psi (0.7 Mpa) dry, filtered air
- Maximum Pressure: HPT-1000: 1000 psi (6.8 Mpa)
- Pressure Reading Accuracy: ±0.4% of full scale
- Pressure Unit Measurement: psi, atm and bar
- Data Output: Date, Time, Test Results, Operator ID, Lot ID, Pressure Units
- Accessory Items: Temperature-controlled water bath Balloon compliance fixture Compact thermal printer
