Material Removal

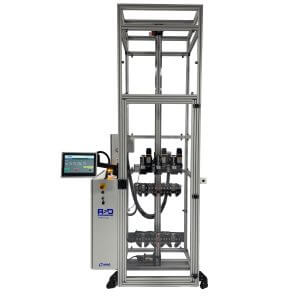

Automatic CT Mandrel Puller

Shipping Weight: 900-1400 lb (408-635 kg)
Machine Weight: 500-1000 lb (226-454 kg)
Height: 103-120 in (2616-3048 mm)
Width: 60 in (1524 mm)
Depth: 38 in (965 mm)
Air: 30-80 psi
Sensors: Homing sensor and over-travel sensors
Drives: servo motor and gear box

The CATH-TECH™ Mandrel Puller removes mandrels from any finished catheter tubing, accommodating both solid and stretch materials. This automated system is customized to your catheter product specifications to ensure consistent, precise mandrel removal while minimizing operator engagement. Pull speeds are programmable, and the machine offers multiple gripping options and mandrel handling post-completion to protect finished units from damage.

Request a Quote

Product Details

Key Features

Pulls solid or stretch mandrels from any finished catheter tubing.
Equipment can be fabricated to meet length and diameter requirements.
Standard machines pull 44 in and 53 in lengths.
Program up to 5 zones with up to 20 recipes.
Pull speeds and other items can be programmed or set to a specific speed.
Multiple mandrels can be pulled simultaneously on a custom basis.
Program the collet rotation direction (clockwise or counterclockwise) through the HMI.
