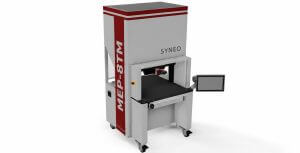

MEP-8TM Semi-Automatic Electric Press
SYNEO Press-Fit systems deliver precise, controlled insertion of electronic connectors into printed circuit boards (PCBs), creating reliable electrical and mechanical connections without soldering. Designed for accuracy, repeatability, and process control, these systems help manufacturers reduce assembly defects, protect sensitive components, and improve production efficiency.
With advanced force and position monitoring, customizable tooling, programmable press profiles, and Industry 4.0 connectivity, SYNEO solutions support consistent assembly quality across a wide range of electronic manufacturing applications.
Product Details
Key Features
- Industry 4.0. ready
- Ethernet ready
- Automatic profile generation
- Common software with 1 click recipe transfer between machines
- Easy maintenance
- Made in USA
- CE Certified, UL ready
Specs
- True Distance Measurement (TDM) with 0.001 mm resolution for precise head positioning
- Instantaneous Feedback system for real-time defect detection (bent pins, misalignment)
- Zero Gap Head design eliminates loss of motion and improves pressing accuracy
- 2 Stage-Force (2SF) Measurement (optional) for enhanced precision and force accuracy
- High-sensitivity force detection below 20 lbs with improved measurement accuracy
- Servo-driven press head with adjustable speed, height, and force control
- Z-axis accuracy up to ±0.025 mm (±0.010 mm with TDM)
- Pressing travel distance: 134.6 mm (5.3″)
- Force capacity up to 71 kN (8 tons)
- Force system accuracy within <5% of actual reading (improved with 2SF option)
- Manual PCB loading and XY positioning with laser-guided tooling alignment
- Connector compatibility: TEC / flat rock
- Thickness measurement capability with integrated measurement tools
- Air table with foot-switch operation for PCB handling
- Electrical requirements: 208/240V, single-phase, 50/60 Hz
- Air supply requirement: 80 psi (0.6 MPa) dry air
- Safety system with light curtain and dual-hand operation
