Electrochemical Grinding: SG-1645

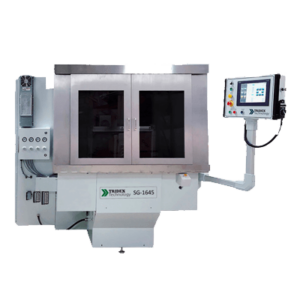

The Tridex SG-1645 Burr-Free Electrochemical NC/CNC Surface Grinder is a faster alternative to traditional surface grinding. By providing burr-free and low-force grinds that leave no heat-affected zones it virtually eliminates the need for deburring or other corrective secondary operations. The SG-1645 comes standard with conversational NC control with the option for Mitsubishi CNC controls. For grinding points on wires or medical needles, the Tridex PGS-100 Point Grinding System can be easily integrated.

arthroscopic shaver teeth
Arthroscopic Shaver teeth
Play Video
Key Features
  • Robust stationary table design makes the machine easier to automate and provides more robust machine guarding.
  • Wheel moves in X, Y, and Z axes.
  • Available Index Table Pallet Changer allows the operator to load the next part while grinding is in operation.
  • Easily integrates with automation to increase process efficiency.
  • Standard simple conversational control with color HMI touchscreen. Full CNC is optional.
  • Standard MPG Handwheel.
  • Heavy duty cast iron weighs 8,000 lbs for superior tolerance and finish.
  • Precise flange mounted electrolytic grinding spindle.
  • Stainless steel electrolyte tank sealed against mist and leaks.
  • Feed components are protected from electrolyte.
  • Integration of the Tridex PGS-100 Point Grinding System is simple for grinding points on wire and medical needles.
Specs
  • Axis Travel: X: 18.1” (460mm); Y: 15” (380mm); Z: 6.3” (160mm)
  • Table Size: 22.8” (580mm) x 8.6” (220mm)
  • Positioning Accuracy: +/- .0001”/4” (0.0025mm/100mm)
  • Repeatability: +/- .00004” (0.001mm)
  • Traverse Speeds: 600”/min (15m/min)
  • High Precision Spindle: Sealed Ceramic Bearings, Direct Coupled
  • Spindle Motor: 7.5HP (5.6KW) Direct Drive AC Spindle Motor – No Drive Belt, 0 – 4,000 RPM
  • Power Supply: 0-20V DC, 300A Solid State (600A Optional)
  • Control: Mitsubishi conversational color touch screen standard; CNC optional; Removable MPG Handwheel
  • Electrolyte Supply Tank: 50 Gallon (200 Liter) Sealed Stainless Steel
  • Safety Standards: Meets CE and ISO 13849.1 Safety Standards
  • Machine Weight: 8,000 lbs (3628kg)
  • Machine Footprint: W: 80” (2,030mm) ; D: 76.5” (1,945mm); H: 75.5” (1,915mm)
  • Air: 4CFM @ 80PSI
