Bonding
Hot Box

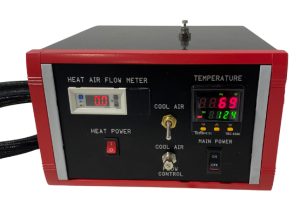

The CATH-TECH Hotbox offers a flexible way to bond balloons, catheter tips, recover heat shrink, or reflow tubing segments. This customizable hotbox comes with interchangeable nozzles, a manual foot pedal for cooling & a digital flow meter.
Product Details
Key Features
- Offers improved yields.
- Thermal nozzle design provides precise tube-to-shaft bonds.
- Increased repeatability within strict process controls.
- Digitized flow meter options.
- Safety guarding features.
- Part holders.
- Line generator for part alignment.
- Performs buttwelds and segment fusing.
Specs
- Temperature range: Ambient to 750°F
- Temperature accuracy: (+/-) 8°F
- Power: 120 VAC, 20 amp
- Air: 60 PSI minimum

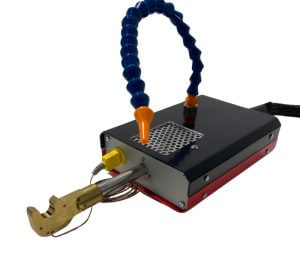

Standard Nozzle Configuration
- U-shaped nozzle
- Widths: .130, .350, .460 in (3.3, 8.9, 11.7 mm)
- Custom C-shaped nozzle available
