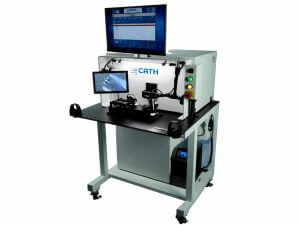

Catheter Tipping: Magnum

The Magnum provides the most flexible RF architecture on the market, capable of tip forming, flaring, and bonding in R&D or production settings. Our state-of-the-art, precision catheter forming systems produce the highest quality parts with speed and consistency. Achieve flashless tips, smooth bonds, and exacting geometry with virtually all thermo-plastic materials. Produce a wide range of applications – flares, flanges, angular welds, bonds, multi-lumen shape transitions, butt welds, balloon to catheter welds, neck downs, soft-tip fusion, metal-to-tube adhering, sheaths, dilators, radio-opaque, strain relief bonds, swaged metal needle guides, tube-in-tube bonds, etc.

Request a Quote

Product Details

Key Features

Optimized for flexible R&D and prototyping runs.
Production-ready for dedicated use with multiple product mixes.
Tailor-engineered to your specific application(s).
Work with extrusion sizes from 1FR to 34+ FR.
Industry-leading flexibility with intuitive in-machine editing.
Store up to 10,000+ recipes.
Modular “black box” tooling design.
Powerful solid-state RF generator.
Generate temperatures up to 650°F.
Control temperature and force with closed-loop architecture.
Easily transfer recipes across machines via USB or network.

Safety Features

CE-compliant with vertical or horizontal light curtain & safety hood enclosure (optional add-on).
Dual-touch sensors.
User-specified alarm.
3-color indicator light (optional add-on).
E-stop.

Add-On Options
