Electrochemical Grinding: SG-2060

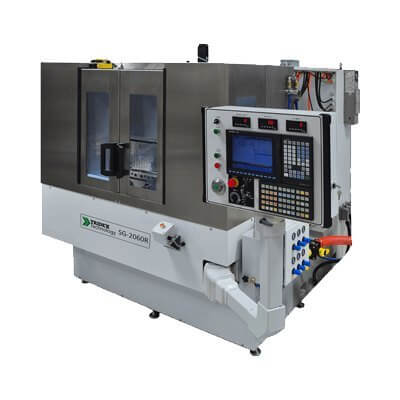

The Tridex SG-2060 Burr-Free Electrochemical CNC Surface Grinder is a faster alternative to traditional surface grinding. By providing burr-free and low force grinds that leave no heat-affected zones it virtually eliminates the need for deburring or other corrective secondary operations. For grinding points on wires or medical needles, the Tridex PGS-100 Point Grinding System can be easily integrated.
Product Details
Key Features
- Robust stationary table design makes the machine easier to automate and provides more robust machine guarding.
- Wheel moves in X, Y, and Z axes.
- Available Index Table Pallet Changer allows the operator to load the next part while grinding is in operation.
- Increasing productivity, index table can run two Tridex PGS-100 Point Grinders.
- Easily integrates with automation to increase process efficiency.
- Standard CNC simple conversational control with color Mitsubishi HMI touchscreen.
- Standard MPG Handwheel.
- Meets CE & ISO 13849 safety standards.
- Heavy duty cast iron weighing 16,000 lbs for superior tolerance and finish.
- Precise flange mounted electrolytic grinding spindle.
- Stainless steel electrolyte tank sealed against mist and leaks.
- Feed components are protected from electrolyte.
- Integration of the Tridex PGS-100 Point Grinding System is simple for grinding points on wire and medical needles.
- Available with full rotary table (C) axis.
Specs
- Axis Travel: X: 24 in (600 mm); Y: 15.75 in (400 mm); Z: 8 in (200 mm)
- Table Size: 31.5 in (800 mm) x 13.4 in (340 mm)
- Positioning Accuracy: +/- .0001 in /4 in (0.0025 mm/100 mm)
- Repeatability: +/- .00004 in (0.001 mm)
- Traverse Speeds: 600 in/min (15 m/min)
- High Precision Spindle: Sealed Ceramic Bearings, Direct Coupled
- Spindle Motor: 7.5 HP (5.6 kW) Direct Drive AC Spindle Motor – No Drive Belt, 0 – 3,500 RPM
- Power Supply: 20 V DC, 300 A Solid State (600 A, 1000 A Optional)
- Control: Mitsubishi CNC color screen, Removable MPG Handwheel
- Electrolyte Supply Tank: 50 gal (200 L) Sealed Stainless Steel
- Safety Standards: Meets CE and ISO 13849.1 Safety Standards
- Machine Weight: 16,000 lb (7258 kg)
- Footprint: W: 72 in (1,830 mm) ; D: 85 in (2,160 mm); H: 88 in (2,235 mm)
- Air: 4 cfm @ 80 psi
