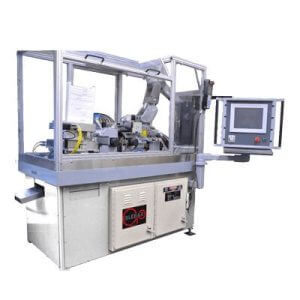

Infeed/Thrufeed Centerless Grinder: GT-610-SD

The Glebar GT-610-SD is a Thrufeed/lnfeed Centerless Grinder designed to grind supermaterials such as polycrystalline diamonds and other hard materials where the process is unknown and challenging. This machine was configured to gather all the parameters affecting the grinding process for the sake of analysis and optimization. The result is the ability to fine-tune the grinding process through data acquisition and then modify it to improve throughput, increase wheel life, and achieve the most optimum setup.

Request a Quote

Product Details

Key Features

The high-speed, high-performance multi-axis controller maintains diameter control.
The super-high-rigidity roller guides carry the work-rest blade on one axis and the regulating wheel on a separate second axis; both axes maintain a 0.1-micron resolution.
A built-in automatic wheel-balancing system dynamically adjusts and eliminates wheel vibration, producing superior surface finishes and improving wheel life.
The intuitive touchscreen interface allows all movable axes and peripherals to be programmed for an efficient, short cycle, including a gantry system or laser micrometer.
The machine control detects grinding wheel loading and initiates the dressing cycle to maintain efficient grinding.
A variable-speed vector drive allows the machine to maintain a constant surface speed as the work wheel wears, ensuring repeatable, efficient grinding performance.
Available ABEC 7 bearings and a super-high-precision regulating wheel housing maintain extremely tight tolerances.
Part diameter feedback lets the machine correct the wheel dress profile for size variation by station and slide position.
An available variable-frequency drive on the work-wheel spindle increases wheel surface feet when running super abrasives such as vitrified CBN.
