Liner Stretcher

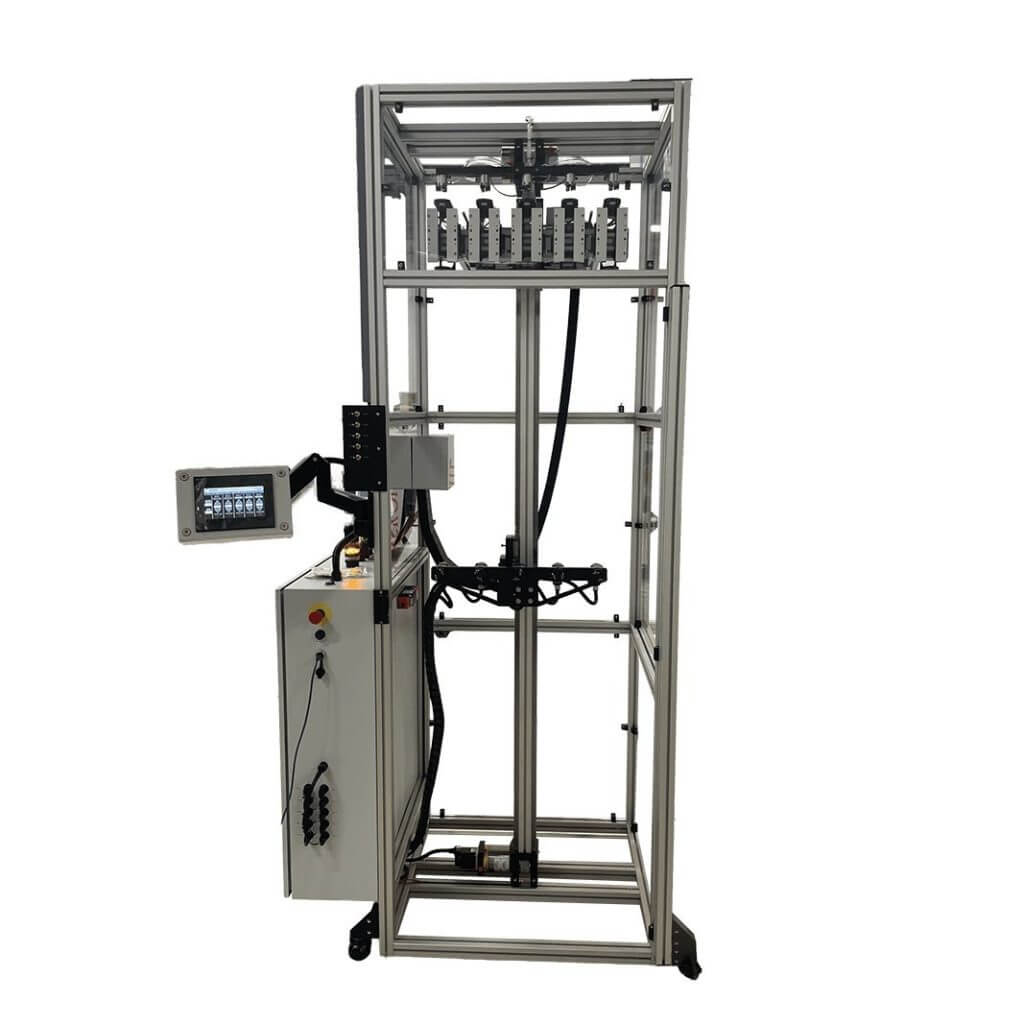

The CATH-TECH™ Liner Stretcher uses a combination of heat and tension to process a liner onto a fixed mandrel. This automated process eliminates the need for operators to hand-stretch a liner.
Our CT-Liner Stretcher and its process allow the liner to sit tight against the mandrel with minimal relaxation. Because of fine machine control combined with the process, throughput increases, scraped units decrease, and etching issues (“white liner”) diminish. This process also eliminates operator safety and health issues related to carpal tunnel syndrome.
Product Details
Key Features
- Available in either Servo Stretcher or Dead Weight configurations.
- Program up to 20 recipes on a standard unit.
- Easy-to-use HMI operator interface.
- Integrated temperature controllers.
- Dead weight system implementation.
- 208-240 VAC; single- or three-phase power.
- System processes can be configured for different liner and mandrel set-ups.
- Can be built in single- or double-split die configuration.
Options
- Safety: door with indicator switch, safety interlock, open with pull cables.
- Light curtain.
- Load elevator or fixed gripper rack available.
- Tension load cell system.
- Standard machine heights: 103, 108, 120 in. Custom heights available.
Specs
- Shipping Weight: 900-1400 lb (408-635 kg)
- Machine Weight: 500-1000 lb (226-454 kg)
- Height: 103-120 in (2616-3048 mm)
- Width: 60 in (1524 mm)
- Depth: 38 in (965 mm)
- Temperature Accuracy: (+/-) 2°F (2.78°C)
- Air Pressure: 80 psi minimum
- Product Diameter: .020 – 0.375 in (0.508 – 9.525 mm)
- Product Capacity: 6-12 units (dependent on design)
- Heater Travel Speed: 0.1 mm/s -10 cm/s
- Single Run Product Capacity: Repeat
- General Warranty: 1 year
- Heat Controls: Each chamber is independently controlled through HMI
- Gripper assembly: Grippers have a working diameter of 0.020-0.240 in
- HMI: Program up to 5 zones with up to 20 recipes
- Product length (on standard machine): min – 2 in (51 mm) to max 70.87 in (Customizable options available)
- Frame: Extruded aluminum framing
- Safety: Use polycarbonate sheeting to protect operator & machine
- Process Speed: Controlled by servo motor & gear box for precision control at the lowest speeds
