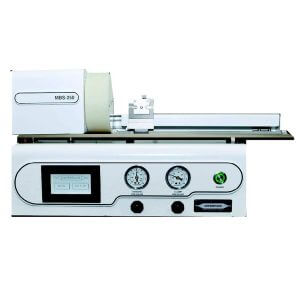

Marker Band Swager: MBS-250
The Interface Catheter Solutions branded Marker Band Swager, MBS-250, is compact and clean-room ready with 360° swaging performance for gradual and smooth diameter reduction of marker bands for catheter production. The swaging equipment offers superior performance and no striations or deformations to the swaged parts.
Product Details
Key Features
- High-quality swaging operation for no striations or deformations to the swaged parts.
- Improve setup, wear and maintenance with one-piece die design.
- Increase capabilities for distance between marker bands.
- Smallest footprint available on the market, clean-room ready and easy-to-use.
Specs
- Dimensions: 21.12 in W x 11.75 in H x 6.75 in D (536.5 mm x 298.45 mm x 171.45 mm)
- Weight: 15.15 lb (6.87 kg)
- Die Material: Heat-treated stainless steel
- Power: 24 VDC @ 1950 mA maximum 47 W
- Air: 100-120 psi (6.9 – 8.3 bar)
- Standard Mode: 2 marker bands
- Single Mode: Multiple marker bands
- Swaging Die Sizes: Custom size diameters ranging from 0.020 in to 0.188 in, 0.5 mm to 4.78 mm (1.5 Fr to 14 Fr)
- Die Rotation Speed (continuous): ~ 0.5 rotations / second
- Hammer Frequency: 5 to 30 Hz (10 to 60 strokes at 2 seconds per revolution)
- Auto-feed Clamp Speed: 0.1 mm / s to 20 mm / s
- Distance Between Marker Bands: Up to 250 mm
- Rotation: 360°
- Noise Level: Less than 77 dBA
- Standard Model: Part #727023-10 (10 mm cylinder bore): Up to 0.066 in, 1.67 mm (5 Fr) and marker band wall thickness > 0.002 in, 0.051 mm
- High Force Model: Part #727023-15 (15 mm cylinder bore): Up to 0.184 in, 4.7 mm (14 Fr) and marker band wall thickness > 0.002 in, 0.051 mm
- One-Piece Die: Part #506054-TBD
