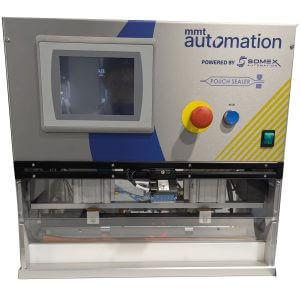

New Generation Bar Pouch Sealer (Model BPS-010)
The New Generation Bar Pouch Sealer (Model#: BPS-010) is a compact tabletop Bar Sealer, PLC-controlled and interfaced with a label printer to control (poka-yoke) your pouch labeling and sealing process. It incorporates the new upgraded control system.
Options:
- Sealer Stand: Raises the height of the sealer on the tabletop
- Adjustable Pouch Support Platform: Helps locate the pouch. Other pouch platforms can be designed on request.
Product Details
Key Features
- Accurate digital control of temperature, pressure, and time.
- Includes an Allen-Bradley PLC programmed with standard functions for barcode and printer integration to poka-yoke the sealing and printing sequence and prevent unlabeled or unsealed pouches from leaving the sealing station.
- Touch screen Allen Bradley 7” HMI. Key features include:
- Recipe-based product/parameter selection through barcode scanner or from HMI.
- Display and monitor process parameters (temperature, pressure & time) and process alarm messages.
- Calibration screen to simplify the calibration process.
- 450 mm sealer bar with 10mm seal width. Other widths are available upon request.
- Sealer tooling defines the pouch sealing position and verifies the correct pouch size for the UPN.
- CE Compliant.
The upgraded Bar Pouch Sealer Machine design uses state-of-the-art technology.
