Pleating & Folding: PTF-240-A
The PTF-240-A is a fully automated machine and can pleat and fold balloons with a maximum length of 230 mm. The balloon products are clamped on a stable product table with automatic positioning using stepper motors.
Product Details
Key Features
- 10 in color touch panel interface with parameter setting and recipe control.
- Servo-controlled zero gap fold head with stainless tool steel blades and high-wear resistant low friction coating.
- Innovative design for quickly exchanging the pleater setup from 3-, 4-, 5-, or 6-pleats.
- The PTF-240-A is built with a very high-quality benchmark resulting in a stable and robust design with minimal cost of ownership.
- Easy-to-use user interface software with recipe control. Barcode scanners support as standard.
- Fold head heating is standard. Optionally, the pleater modules can be fitted with a heating system.
- The design is optimized for use in cleanrooms and can be very easily wiped and cleaned due to the smooth and closed surfaces.
Specs
- Balloon Pleater & Fold Head Size: 240 mm length maximum opening 30 mm
- Maximum Balloon Length: Approx. 200 mm (depending on cone angles)
- Number of Pleats: 3, 4, 5 or 6 pleats with pre-shape
- Heating on the Pleaters: Optional. Maximum temperature 90 °C
- Heating on the Fold Head: Standard. Maximum temperature 90 °C
- Fold head control:
- 0.1 mm – 30 mm servo controlled
- +/- 0.02 mm @ 100N accuracy
- Dynamic Diameter Compensation (DCC) available
- 1000 N radial force max
- Pleat Head Control: Servo controlled with CW/CCW pleater option
- Product Inflation/Deflation:
- 1 port (max. 6 bar / minimum -0.8 bar) with hub connector
- Footswitch activation on the product clamp unit
- GUI: 10 in color touch panel
- Control Software:
- Recipe based
- Password levels (operator, engineer, calibrator)
- Remote support option
- Ethernet: Yes
- USB: Yes
- Air: 7 bar minimum
- Power: 115 / 240 V / 0.8 kW
- Safety Systems: Covers with coded magnet and safety PLC circuit
Related Equipment
Forming
Balloon Forming: BFM 5510 HF
The Interface Catheter Solutions BFM-5510 High Force Balloon Forming Machine introduces advanced capabilities for manufacturing Structural Heart, Large Platform &…
Forming

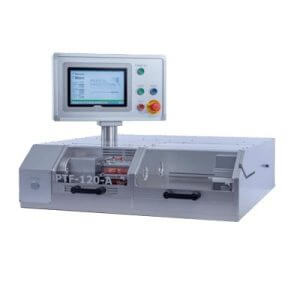

Pleating & Folding: PTF 120 A
