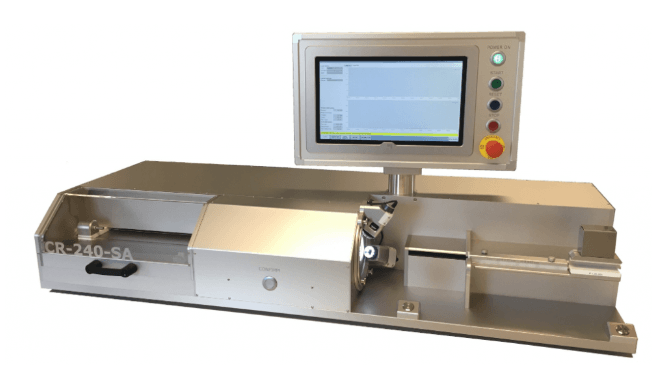

CR-240-SA Stent Crimping Machine
The CR-240-SA Stent Crimping Machine is developed for the crimp and transfer of self-expandable stents into delivery systems in a single, controlled process. It accommodates stents up to 200 mm in length with a maximum diameter of approximately 30 mm, supporting consistent handling of larger, more complex devices.
Product Details
Key Features
- Integrated dual camera system for process monitoring
- Servo-controlled stent crimping head with Zero Gap technology
- Exchangeable pusher rods and delivery system holders for various stent diameters
- 15.5 in user interface with recipe control for process setup
- Built to a high-quality standard for a stable, robust design with minimal cost of ownership
- One-point automatic diameter calibration for quick system setup
- Calibration completed in seconds
- Full process data logging to the internal PC with transfer available via USB for analysis
Specs
- Stent Crimping Length: 240 mm head. Maximum 200 mm length stents
- Stent Type: Self-expandable stents (also for covered stents)
- Maximum Diameter Loading: 30 mm (optionally larger sizes possible)
- Maximum Opening Crimp Head: 35 mm
- Minimum Closing Diameter: 0.1 mm (software limit)
- Crimp Head Control: Servo controlled position / force
- Diameter Accuracy: + / – 0.02 mm @ 100 N
- Maximum Crimp Force: 1000 N radial. Dynamic Diameter Compensation possible
- Crimping Speeds: 0.1 mm / s – 10 mm / s
- Maximum Transfer Force: 200 N with loadcell measurement on the pusher
- Stent Loading: Manual (with optional aid of two microscope cameras)
- GUI: 15.5 in color touch panel
- Control Software:
- Zoomable process graphs
- Recipe based
- Password levels (operator, engineer, calibrator)
- Data logging with USB transfer possibility
- Ethernet: 2x
- USB: 2x
- Air: 7 bar minimum
- Power: 115 V / 240 V / 0.5 kW
- Safety Systems: Covers with coded magnets and safety PLC system and double hand control system.
