Thrufeed Centerless Grinder: TF-9D

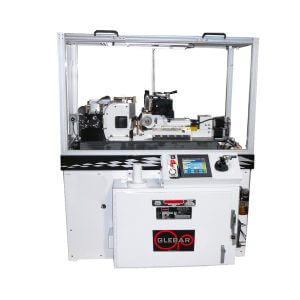

The Glebar TF-9D Infeed/Throughfeed Centerless Grinder uses computer controls to grind both hard and soft materials including catheters, medical guidewires, and spinal cord stimulators. Inside the compact footprint is a 7HP main spindle motor powering an 8.625 in wide work wheel combining to remove more material faster, and with better surface finishes, than similar machines with narrower grinding wheels. The TF-9D is designed to enhance productivity through a simple control interface and automation integration. Common applications include guidewires, catheter bodies, spinal cord stimulators, pins, and other engineered materials.
Product Details
Key Features
- Grinds both hard and soft materials.
- Intuitive touch screen HMI allows an unskilled operator to run multiple high-precision machines simultaneously.
- Closed-loop control via linear scale on the movable slide.
- Interface to measurement instruments allows for automatic size compensation.
- Independent upper and lower slide positioning.
- A single operator can change the work wheel in less than 15 minutes.
- Automatic infeed for forming small shaped parts.
- Remote connectivity simplifies troubleshooting and maintenance.
- Built-in infeed and throughfeed cycles with programmable inputs and positioning.
- Available stationery and removable wheel dressers.
- Full turnkey automation integration available including feeders, robots, pick/place gantry, gauging, cleaning, and sorting assemblies.
- Glebar P4K Gauging System available to feed diameter measurements to the control system for automatic size compensation.
Specs
- Diameter Accuracy: 0.00005 in (1.3 μm)
- Roundness: 0.00005 in (1.3 μm)
- Grinding Diameter Capacity: Min 0.002 in (0.05 mm) – Max 2.5 in (63.5 mm)
- Grinding Length: Infeed 8 in (200 mm), Thrufeed – no limit
- Work Wheel Power: 7.5 HP (5.6 kW), 10 HP (7.5 kW), 15 HP (11 kW)
- Work Wheel Diameter: 9 in (229 mm)
- Work Wheel Width: 8.625 in (219 mm)
- Work Wheel RPM: 2,400
- Regulating Wheel Diameter: 4 in (100 mm)
- Regulating Wheel RPM: 10-400
- Machine Footprint: 58 in x 31 in x 71 in (147 cm x 79 cm x 180 cm)
- Machine Weight: 2,085 lb (with granite bed)
- Resolution: 0.000004 in (0.1 μm)
- Power: 480 V, 60 Hz, 40 A (15 HP), 25 A (7.5 HP)
- Air: 4 cfm @ 80 psi
- Machine Bed: 6 in Thick Granite (also available on cast iron)
