Water Jacket Assemblies

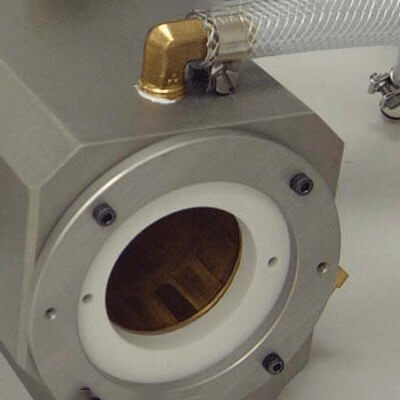

Interface Catheter Solutions offers a full line of Water Jackets to be used with our Balloon Forming Machines. Each Water Jacket accommodates a range of mold sizes. The water jackets are interchangeable and can be installed in minutes. This modular approach allows one to form balloons ranging in size from 1.5mm x 10mm long to 18mm x 247mm long to 40mm x 150mm long on the same machine by simply changing the mold and water jacket.
Product Details
Key Features
- Water Jackets marked with “*” cannot be used on our Small Balloon Forming Machine, model 9506H.
- Water Jackets marked with “**” can be used on 220 Volt Computerized Balloon Forming Machines with High Power Heating option.
- Water Jackets marked with “***” can only be used on Computerized Balloon Forming Machine Models with the 220 Volt, High Power, Extended Ball Screw option.
- Molds with heated end plugs cannot be used with Small Water Jacket Assemblies.
Specs
- 502044 Small / Short: Ø 1.0 – 6.0mm by 0 – 35mm long
- Center Split Molds: Ø 1.0 – 11.0mm by 0 – 15mm long
- 502048 Small / Med: Ø 1.0 – 6.0mm by 32 – 65mm long
- 502138 Small / Long: Ø 1.0 – 6.0mm by 62 – 95mm long
- 502252 Small / X-Long: Ø 1.0 – 6.0mm by 89 – 122mm long*
- 502218 Small / XX-Long: Ø 1.0 – 6.0mm by 114 – 140mm long*
- 502404 Small / XXX-Long: Ø 1.0 – 6.0mm by 136 – 162mm long*
- 502045 Large / Short: Ø 6.0 – 18.0mm by 0 – 36mm long
- Center Split Molds: Ø 11.0 – 20.0mm by 0 – 25mm long
- 502041 Large / Med: Ø 6.0 – 18.0mm by 23 – 55mm long
- 502046 Large / Long: Ø 6.0 – 18.0mm by 51 – 83mm long
- 502233 Large / X-Long: Ø 6.0 – 18.0mm by 76 – 109mm long*
- 502270 Large / XX-Long: Ø 6.0 – 18.0mm by 101 – 134mm long*
- 502361 Large / XXX-Long: Ø 6.0 – 18.0mm by 127 – 159mm long**
- 502368 Large / XXX+-Long: Ø 6.0 – 18.0mm by 162 – 200mm long***
- 502235 Large / XXXX-Long: Ø 6.0 – 18.0mm by 176 – 247mm long***
- 502242 Large Plus / Long: Ø 17.0 – 23.0mm by 55 – 105mm long*
- 502180 X-Lrg / Short: Ø 20.0 – 40.0mm by 0 – 50mm long***
- 502204 X-Lrg / Med: Ø 20.0 – 40.0mm by 25 – 75mm long**
- 502181 X-Lrg / Long: Ø 20.0 – 40.0mm by 55 – 105mm long**
- 502230 X-Lrg / X-Long: Ø 20.0 – 40.0mm by 100 – 150mm long**
