Coil Winding Technologies

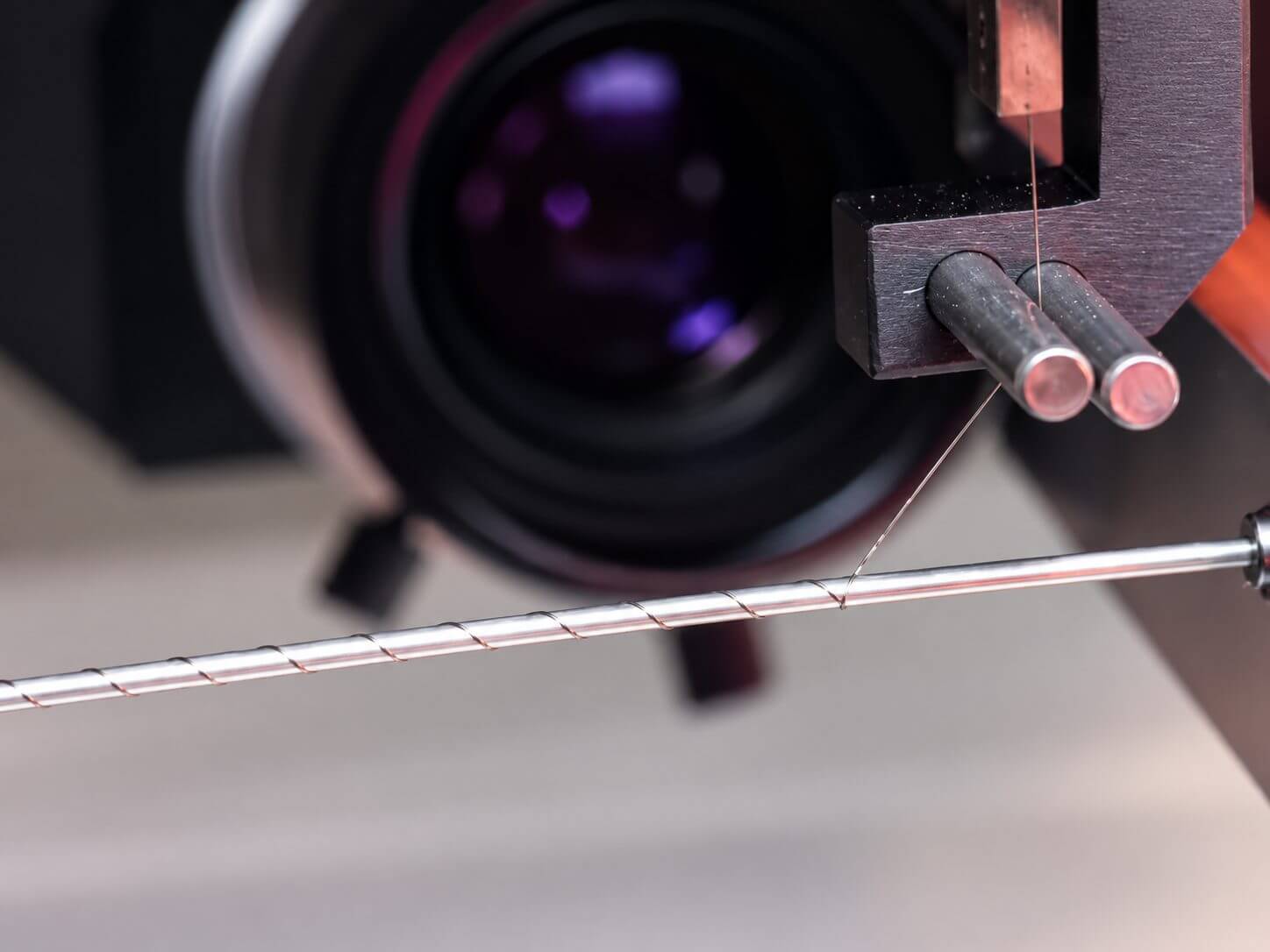

Coil winding solutions delivered through MMT assist with the production of micro-coils used in minimally invasive medical devices and other precision applications. Designed to accommodate increasingly small and complex components, our technologies provide precise control over critical winding parameters, including filament tension, wind angle, pitch, and coil geometry.
From R&D and proof-of-concept development through production, MMT supports single- and multi-filar coil winding across a wide range of materials, mandrel sizes, and device requirements.
Advanced capabilities such as programmable recipes, closed-loop tension control, and machine vision help manufacturers develop complex coil constructions with the consistency and process control required for demanding applications, including cardiovascular and neurovascular catheters, guide catheters, electrodes, and other interventional devices.
Contact an Engineer
Our Equipment

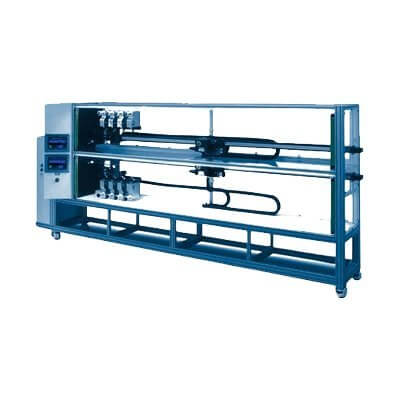

EBD 924 Multi-Filar Coil Winder
The Engineering By Design 924 Multi-Filar Coil Winder machine uses a vision system to wind fine filaments around a spinning mandrel and produce multi-filar micro coils with up to 4 filars.
EBD 503 Single Filar Coil Winder
Engineering By Design’s 503 Single Filar Coil Winder offers precision micro-coil winding from a larger DIN 80 supply spool. By improving the accuracy of all controlled parameters, this machine can boost productivity by reducing rejects and increasing winding speeds.
EBD 996 Benchtop Coil Winder
The Engineering By Design 996 Benchtop Coil Winder empowers R&D engineers with exceptional control and accuracy for proof-of-concept and small-scale production of micro coils for catheters, pacemakers, and emerging medical devices.
End-to-End Service Coverage. MMT’s TotalCare program transforms service into a strategic advantage.
By combining deep technical expertise with hands-on support it helps medical device manufacturers stay ahead of production challenges. Around-the-clock access, ongoing training, proactive maintenance, and smart inventory management keep operations running without delay.
