Now 30% Faster than the Original!
The Split Mold Balloon Forming Machine (BFMS-500-S2) is a medical balloon forming machine built for precise, high-speed balloon catheter forming through full servo control on both the proximal and distal axes. This enables accurate and rapid parison stretching throughout the balloon-blowing process. Each axis features integrated force control and individual load cell systems, allowing forces to be continuously monitored and applied as active control parameters. Standard on every BFMS-500-S2 is our new Rapid Heat Cool Mold Technology, which forms balloons up to 30% faster than the original, while the quick-exchange heat/cool block design makes switching between balloon sizes and shapes fast and effortless.
Available options include:
- Integrated High-Pressure Generation
- Active Pressure Drop Control (APDC)
- Parison Pre-Heating
Description
The Split Mold Balloon Forming Machine (BFMS-500- S2) has full servo control on the proximal and distal axis. This allows for precise and fast stretching of the parisons during the balloon-blowing process. The axis has force control and individual loadcell systems allowing forces to be monitored and used as control parameters during the process. Our BFMS allows you quickly exchange the heat/cool block for a different size/shape balloon.
Available Options: Integrated High-Pressure Generation • Active Pressure Drop Control (APDC) • Parison Pre-Heating
Specifications
- Flexible Process Interface for virtual limitless process cycle options on large 19” full-color touch panel interface.
- Fast and strong full servo-controlled axis for repeatable and reliable stretching of the parison materials during the balloon catheter forming process.
- Integrated safety light curtain with intuitive user interaction for safe operation.
- Optional High-Pressure system integrated eliminates the need for a high-pressure factory network or the use of N2-bottles.
- Standard equipped with a safety light curtain with intuitive operator feedback.
- Large 19” full-color touchscreen user interface for easy overview of the machine behavior.
- Standalone Flexible Process Interface software package available for offline development of processes.
- Parison pre-heating system to reduce cycle times.

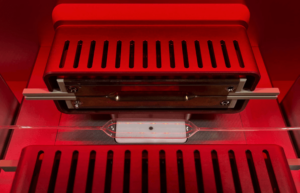

- Quick exchange of mold head (heat/cool block) without the need to manually connect/disconnect water hoses and connectors.
- Rapid Heat and Cool Mold forms balloons up to 30% faster than the original.
Now with Rapid Heat Cool Mold Technology – Up to 30% Faster than the Original.
