CS1-EA: Hybrid Burr-Free and Precision Abrasive Cutoff Machine

The Tridex CS1-EA Hybrid Burr-Free Electrochemical (ECG) & Precision Abrasive Cutoff Machine combines the best of the CS1-A Precision Abrasive and CS1-E Electrochemical Cutoff machines into one robust and compact design. The hybrid design provides flexibility depending on the part being cut.

cut metal tubes and bars

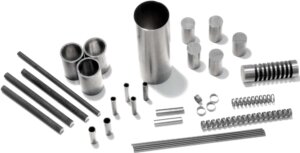

Metal tubes and bars
Play Video about Tridex CS1-EA Hybrid Burr-Free Precision Abrasive Cutoff Machine
Key Features
  • Electrochemical Cutoff for Burr-Free tube or wire cutoff.
  • Precision Abrasive cutoff with minimal burr.
  • Easily change between ECG and Abrasive modes.
  • Cuts multiple tubes or bars per cycle.
  • All stainless construction including full access stainless splash guard and electrolyte/coolant tank.
  • Easy setup and operation using color touchscreen HMI.
  • Fixtures and jobs can be changed in one minute.
  • Programmability and flexibility of changing cut lengths without operator input.
  • Offered in right-or-left-hand configuration to create a work cell with one operator running two machines.
  • Thin, inexpensive rubber-bonded wheels never go dull or need sharpening, minimizing kerf loss.
  • Leaves parts with a smooth surface finish, 0.2 -0.4 RA typical.
  • Cutting Capacity – Diameter: Standard .012” (0.3 mm) to 3.15” (80 mm)
  • Cutting Capacity – Length: min .25” (6 mm) to .12” (3 mm)
  • Positioning Accuracy: .0004” (0.01mm)
  • Traverse Speeds: 600”/min (15m/min)
  • High Precision Spindle: Ceramic Bearings and Air Purge
  • Spindle Motor: 7.5HP direct drive servo motor
  • Power (Precision Abrasive Mode): 460V, 60Hz standard. 380V, 50Hz optional
  • Power (Electrochemical Mode): 20V, 300A DC – 600A optional
  • Carbide Blade Guides (Abrasive Mode): Low profile with simple adjustment control
  • Control: Operator pendant color touchscreen
  • Fixtures: Quick change – no tools required
  • Electrolyte/Coolant Supply Tank: 50 Gallon (200 Liter) Stainless Steel
  • Safety Standards: Meets CE and ISO-13849.1
  • Air: 4CFM @ 80PSI
  • Machine Footprint: 137” x 79” x 79” (3,480 x 2,000 x 2,000mm)
  • Machine Weight: 3,300 lbs (1,497kg)
