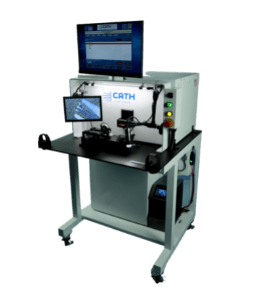

Catheter Tipping: Magnum

The Magnum provides the most flexible RF architecture on the market, capable of tip forming, flaring, and bonding in R&D or production settings. Our state-of-the-art, precision catheter forming systems produce the highest quality parts with speed and consistency. Achieve flashless tips, smooth bonds, and exacting geometry with virtually all thermo-plastic materials. Produce a wide range of applications – flares, flanges, angular welds, bonds, multi-lumen shape transitions, butt welds, balloon to catheter welds, neck downs, soft-tip fusion, metal-to-tube adhering, sheaths, dilators, radio-opaque, strain relief bonds, swaged metal needle guides, tube-in-tube bonds, etc.

Key Features
  • Flexible for R&D and production environments
  • Tailor-engineered to your specific application
  • Work with extrusion sizes from 1FR to 34+ FR
  • Store up to 10,000+ recipes
  • Modular “black box” tooling design
  • Generate temperatures up to 650°F
  • Control temperature and force with closed-loop architecture
  • Transfer recipes easily across machines via USB drive or network
  • Ability for remote access & troubleshooting
Universal Specs
  • RF Induction: 1.2 KW @ 150-400 kHz Solid State
  • Motion: Servo
  • Force Control: Closed-loop
  • Heat Control: Closed-loop PID temperature or generator percent power
  • Air Actuation: Recipe-controlled proportional regulator
  • Power: 120/240 VAC at 50/60Hz
  • Air: 100 psi max. 5cfm
  • Interface: Touchscreen, keyboard, PC, PLC
  • Dimensions: 33.25” x 34.25”x 66”
  • Weight: 300 lbs
Add-On Options
  • Vertical or horizontal light curtain & safety hood enclosure
  • Digital microscope & 10″ LCD screen for inspection
  • Barcode scanner for Black Box Tooling/Recipe Verification
  • 2-Up Tooling Platform Upgrade (application dependent)
  • 3-color indicator light tower
  • Multi-color light tower
  • Customizable table extensions for front and sides
  • Footrest plate
  • Automation-ready configuration
Safety Features
  • Vertical or horizontal light curtain & safety hood enclosure (optional add-on)
  • Dual-touch sensors
  • User-specified alarm
  • 3-color indicator light (optional add-on)
  • E-stop
