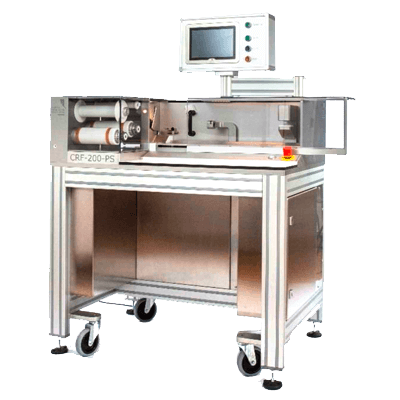

The CRF-200-PS is a stable stent crimping system with film protection for the processing of drug-eluting self-expandable stents. Fully enclose drug residue with our unique 4-film protection system combined with the stable MTP Europe BV 8-blade stent crimper design.
- Graphical User Interface for easy access to process cycle options with large 10” full color touch panel interface.
- Fast and strong full servo controlled axis for repeatable and
reliable transfer of the stents into the delivery systems. - Integrated safety light with intuitive user interaction. Fully enclosed with manual sliding door.
- Unique 4 film routing with easy feed-through and setup is the
only reliable way to ensure you have no cross contamination of
stents. - The CRF-200-PS is built with a very high quality benchmark
resulting in a stable and robust design with minimal cost of
ownership. - The machine has a self-supporting frame with the electrical and
pneumatic components integrated for easy access and maintenance. - The machine can be connected to the internet for online support and updates by MPT Europe BV.
Technical Specs
| Stent crimping length | 200 mm head. Maximum 180 mm length stents |
| Stent type | Self-expandable stents (also for covered stents) |
| Maximum diameter loading | 17.5 mm (optionally larger sizes possible) |
| Maximum opening crimp head | 35 mm |
| Minimum closing diameter | 0.1 mm (software limit) |
| Crimp head control | Servo controlled position / force |
| Diameter accuracy | +/- 0.02 mm @ 100 N |
| Maximum crimp force | 2000 N radial. Dynamic Diameter Compensation possible |
| Crimping speeds | 0.1 mm/s – 10 mm/s |
| Maximum transfer force | 500 N with loadcell measurement |
| Film width and type | 202 mm wide PET film (0.012 mm thickness) |
| GUI | 10” colour touch panel |
| Control software | Zoomable process graphs Recipe based Password levels (operator, engineer, calibrator) Remote support option |
| Indicators | Optional signal light / accoustic alarm (user programmable) |
| Ethernet | 2x |
| USB | 4x |
| Required air pressure | 7 bar minimum |
| Vacuum system for waste coating | The machine has a 50 mm outlet to connect a waste vacuum system |
| Power supply | 115 or 240 VAC / 2 kW |
| Heating system | Optional heating system (up to 60°C) |
| Cooling circuit | Optional cooling system (+10°C) or low temperature (-15°C) |
| Safety systems | Sliding door with safety contacts and intuative operator feedback |
