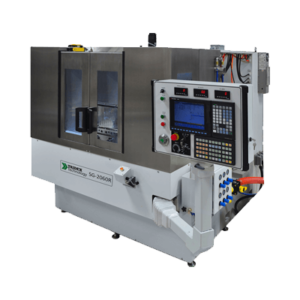

The Tridex SG-2060 Burr-Free Electrochemical CNC Surface Grinder is a faster alternative to traditional surface grinding. By providing burr-free and low force grinds that leave no heat-affected zones it virtually eliminates the need for deburring or other corrective secondary operations. For grinding points on wires or medical needles, the Tridex PGS-100 Point Grinding System can be easily integrated.
Play Video
Key Features
- Robust stationary table design makes the machine easier to automate and provides more robust machine guarding.
- Wheel moves in X, Y, and Z axes.
- Available Index Table Pallet Changer allows the operator to load the next part while grinding is in operation.
- Increasing productivity, index table can run two Tridex PGS-100 Point Grinders.
- Easily integrates with automation to increase process efficiency.
- Standard CNC simple conversational control with color Mitsubishi HMI touchscreen.
- Standard MPG Handwheel.
- Meets CE & ISO 13849 safety standards.
- Heavy duty cast iron weighing 16,000 lbs for superior tolerance and finish.
- Precise flange mounted electrolytic grinding spindle
- Stainless steel electrolyte tank sealed against mist and leaks.
- Feed components are protected from electrolyte.
- Integration of the Tridex PGS-100 Point Grinding System is simple for grinding points on wire and medical needles.
- Available with full rotary table (C) axis.
Specs
- Axis Travel: X: 24” (600mm); Y: 15.75” (400mm); Z: 8” (200mm)
- Table Size: 31.5” (800mm) x 13.4” (340mm)
- Positioning Accuracy: +/- .0001”/4” (0.0025mm/100mm)
- Repeatability: +/- .00004” (0.001mm)
- Traverse Speeds: 600”/min (15m/min)
- High Precision Spindle: Sealed Ceramic Bearings, Direct Coupled
- Spindle Motor: 7.5HP (5.6KW) Direct Drive AC Spindle Motor – No Drive Belt, 0 – 3,500 RPM
- Power Supply: 20V DC, 300A Solid State (600A, 1000A Optional)
- Control: Mitsubishi CNC color screen, Removable MPG Handwheel
- Electrolyte Supply Tank: 50 Gallon (200 Liter) Sealed Stainless Steel
- Safety Standards: Meets CE and ISO 13849.1 Safety Standards
- Machine Weight: 16,000 lbs (7258kg)
- Footprint: W: 72” (1,830mm) ; D: 85” (2,160mm); H: 88” (2,235mm)
- Air: 4CFM @ 80PSI
