Diameter Measurement Systems

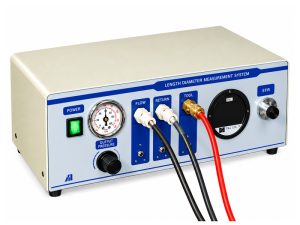

Designed specifically for catheter balloons, the Interface Catheter Solutions Length Diameter Measurement System, LDS-320 offers an accurate, non-contact, low-cost technique for catheter balloon dimensional inspection. It eliminates errors associated with manual contact measurements, as well as variations due to operator skills. accommodate a wide range of balloon diameters and lengths.
Product Details
Key Features
- Bench-top measurement system designed specifically for catheter balloons.
- Offers a non-contact solution to common problems when measuring catheter balloon dimensions.
- By integrating the holding, pressurizing, and movement of the balloon with cutting-edge, non-contact measurement technologies, it delivers reliable and accurate measurements.
- No variability or inaccuracy is caused by contact between the measurement device and the soft, compliant balloon.
- Offers an accurate, non-contact, low-cost technique for inspecting catheter balloons dimensionally.
- Eliminates errors associated with manual contact measurements and variations due to operator skill.
- Accommodates a wide range of balloon diameters and lengths.
Specs
- Pressure Control Range Accuracy Pressure Medium: 0-200 PSI (13.5 Bar) 1.5 PSI (0.1 Bar); Shop Air (100 PSI)
- Diameter Measurement Range Accuracy: 0.3 – 30 mm +/- 0.02 mm
- Diameter Measurement Range Accuracy: 0.5 – 65 mm +/- 0.02 mm
- Axial Length Measurement Range Accuracy: 0.3 – 200 mm +/- 0.02 mm
