• Industry 4.0. ready

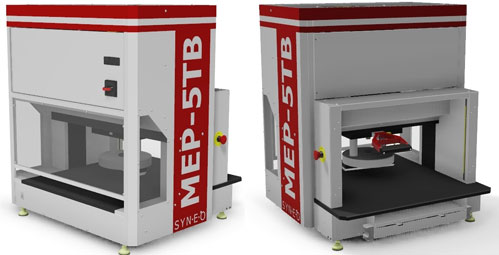

• Bench top press
• Ethernet ready
• Automatic profile generation
• Common software with 1 click recipe transfer between machines
• Easy maintenance
• Made in USA
• CE Certified, UL ready

Specifications

• True Distance Measurement (TDM) with 0.001 mm resolution for precise head positioning
• Instantaneous Feedback system for real-time defect detection (bent pins, misalignment)
• Zero Gap Head design eliminates loss of motion and improves pressing accuracy
• 2 Stage-Force (2SF) Measurement (optional) for enhanced precision and force accuracy
• High-sensitivity force detection below 20 lbs with improved measurement accuracy
• Servo-driven press head with adjustable speed, height, and force control
• Z-axis accuracy up to ±0.025 mm (±0.010 mm with TDM)
• Pressing travel distance: 89 mm (3.5″)
• Force capacity up to 44 kN (5 tons)
• Force system accuracy within <5% of actual reading (improved with 2SF option)
• Manual PCB loading and positioning with laser-guided tooling alignment
• Connector compatibility: TEC / flat rock
• Thickness measurement capability with integrated measurement tools
• Air table with foot-switch operation for PCB handling
• Electrical requirements: 110/240V, single-phase, 50/60 Hz
• Air supply requirement: 80 psi (0.6 MPa) dry air
• Safety system with light curtain and dual-hand operation
