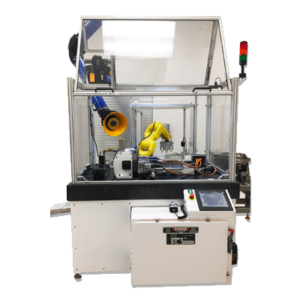

PG-9DOD: Compact OD Grinding Machine

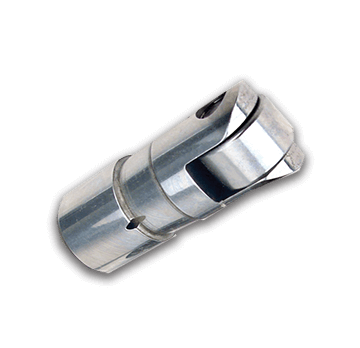

The Glebar PG-9DOD is a compact OD grinding machine designed to handle small components requiring a tight concentricity such as rollers, pins, bushings, and other engine components. Designed to grind high­ performance engine components, it can be simply adapted to process equally challenging parts where the concentricity specification is critical. Parts can be staged on a precision arbor fixture ready to be loaded into the machine.

Play Video
Key Features
  • Granite machine bed coupled with a high precision twin grip spindle holds extremely tight concentricity specs.
  • The servo driven arbor attachment provides part control during the plunge grinding operation.
  • Fully customizable and capable of processing high-volume components using a precision arbor as a fixture.
  • Outperforms conventional OD grinders by using the full face of the wheel to grind the part.
  • The wheel shape can be controlled finitely using a template tracing work wheel.
  • Remote connectivity simplifies troubleshooting and maintenance.
  • Adaptable to full automation for a complete turnkey solution.
Specs
  • Roundness: 0.000020″
  • Work Wheel Length: 10.125″ (257mm)
  • Work Wheel Power: 7.5HP (5.6kW) – 15HP (11kW)
  • Work Wheel RPM: 2,400
  • Electrical requirements: 480VAC, 3PH, 60Hz, 40A
  • Air requirements: 80-90PSI, 3CFM
  • Machine Footprint: 66″ 54″ x 94″ (168 x 137 x 239cm)
  • Resolution: 1µm (0.000004″)
