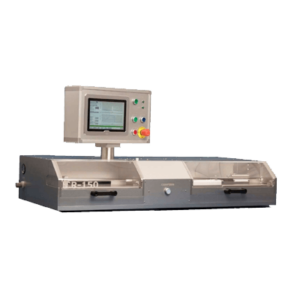

The CR-150 Stent Crimping Machine is developed for the crimping and transfer into the delivery system of self-expandable stents up to 120 mm length with a maximum diameter of approx. 20 mm.
![](https://mmt-inc.com/wp-content/uploads/2023/07/CR-150-300x300.png)
Key Features
- Automatic stent loading with cradle system
- Servo controlled stent crimping head with Zero Gap technology
- Exchangeable pusher rods and delivery system holders for various stent diameters
- 10” user interface with recipe control
- The CR-150 is built with a very high-quality benchmark resulting in a stable and robust design with minimal cost of ownership.
- CR-150 stent crimper can be easily calibrated using the one-point automatic diameter calibration function built into the system. Calibration in seconds.
- Full process data logging to the internal PC system and transfer possibly to external USB for registration or analysis.
Specifications
Stent crimping length | 150 mm head. Maximum 120 mm length stents |
Stent type | Self-expandable stents (also for covered stents) |
Maximum diameter auto loading | 20 mm (optionally larger sizes possible) |
Maximum opening crimp head | 35 mm |
Minimum closing diameter | 0.1 mm (software limit) |
Crimp head control | Servo controlled position / force |
Diameter accuracy | +/- 0.02 mm @ 100 N |
Maximum crimp force | 1000 N radial. Dynamic Diameter Compensation possible |
Crimping speeds | 0.1 mm/s – 10 mm/s |
Maximum transfer force | 200 N with loadcell measurement on the pusher |
Stent positioning | Fully automatic with stent cradle system |
GUI | 10” colour touch panel |
Control software | Zoomable process graphs Recipe based Password levels (operator, engineer, calibrator) Remote support option Data logging with USB transfer possibility |
Ethernet | 2x |
USB | 4x |
Required air pressure | 7 bar minimum |
Power supply | 115 / 240 VAC / 0.5 kW |
UPS | Optional power supply backup to finish current cycle |
Safety systems | Covers with coded magnets and safety PLC system |
