996 Benchtop Coil Winder
Engineered with precision and versatility, the EBD 996 Benchtop Coil Winder empowers R&D engineers with exceptional control and accuracy for proof-of-concept and small-scale production. Intuitive programming streamlines testing new coil winding patterns, evaluating wind pitch tightness, or examining filament tension. From catheters and pacemakers to emerging medical devices, the EBD 996 Benchtop Coil Winder provides […]

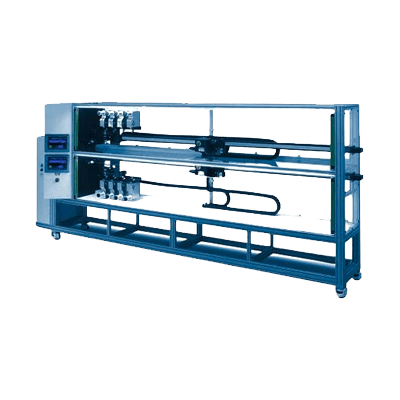

Coil winder: Multi Filar
This coil was formed by winding 12 individual .0045″ diameter wires over a .035″ diameter spinning mandrel. The multi-filar coil winder machine uses a camera vision system to wind fine filaments around a spinning mandrel and produce multi-filar micro coils with up-to 4 filars. After the coils are produced, they are used for medical and […]

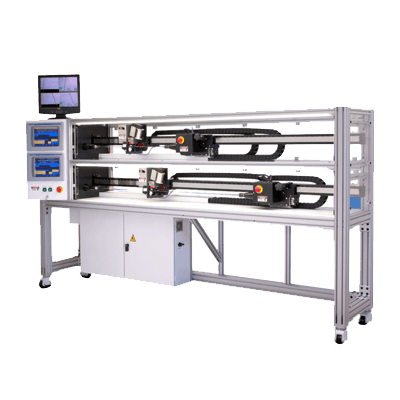

Coil Winder: 503 Single Filar
EBD Coil winding technology is developed specifically to wind micro coils for minimally invasive medical devices. Our coil winders can wind coils down to .001″ diameter wire on a .010″ mandrel using our innovative closed-loop filar tension control system. The machine flexibility enables the filar tension to be recipe controlled from 5 grams to 600 […]

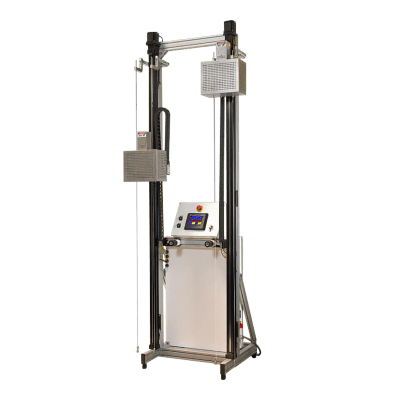

Catheter Laminating: 311
EBD Quad Catheter Laminator shrinks catheter tubing faster than the competition. Designed for vertical operation, its patented hot air circulation process contains the heat within the system, maximizing the time at temperature for faster processing. By improving the accuracy of all controlled parameters, this machine can increase productivity through reduced rejects and faster processing speeds. […]
