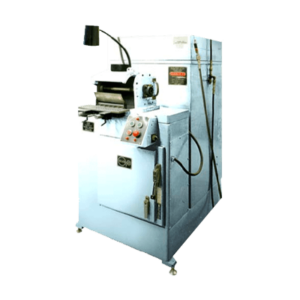

Wheel Dressing Machine: DM-9B

The Glebar DM-9B is a standalone manual dressing machine designed to dress 9″ (229mm) diameter by up to 10-1 /8″ (257mm) wide wheels used on the PG-9BHD and PG-9DHD Plunge Grinders. The DM-9B allows a wheel to be contour dressed in the same method employed on the grinder.

The Glebar DM-9B is a standalone manual dressing machine designed to dress 9″ (229mm) diameter by up to 10-1 /8″ (257mm) wide wheels used on the PG-9BHD and PG-9DHD Plunge Grinders. The DM-9B allows a wheel to be contour dressed in the same method employed on the grinder.

Key Features

  • Work Wheel Diameter: 9″ (229mm) diameter
  • Work Wheel Power: 1HP (0.75 kW)
  • Work Wheel RPM: 2400
  • Work Wheel Width: 10.125″ (257mm)
  • Machine Weight: 1600Ibs (726 kg)
  • Electrical requirements: 480VAC, 3PH, 60Hz, 40A
  • Air requirements: 80-90PSI, 3CFM
  • Machine Footprint: 36″ x 60″ x 64″ (91cm x 152cm x 163cm)

Specs

  • Dress work wheels while offline.
  • Features the same work head assembly as a basic plunge grinding machine.
  • Dust collection with an optional HEPA filter ensures a clean, comfortable work environment.
  • The ability to dress wheels offline increases efficiency and minimizes downtime.
  • Having wheels ready for change-over allows the grinder to be used only for its intended purpose — making parts.
  • For an automated CNC version, check out the DM-9CNC.
