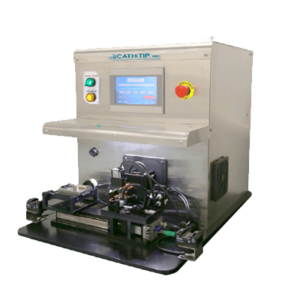

Catheter Tipping: Quantum

The Quantum is a tabletop tipping machine designed to produce superior outputs expected of the CATHTIP standard. Our state-of-the-art, precision catheter forming systems produce the highest quality parts with speed and consistency. Achieve flashless tips, smooth bonds, and exacting geometry with virtually all thermoplastic materials. Produce a wide range of applications – flares, flanges, angular welds, bonds, multi-lumen shape transitions, butt welds, balloon to catheter welds, neck downs, soft-tip fusion, metal-to-tube adhering, sheaths, dilators, radio-opaque, strain relief bonds, swaged metal needle guides, tube-in-tube bonds, etc.

Play Video
Key Features
  • Streamlined for Production
  • Tailor-engineered to your specific application
  • Powerful RF generator
  • Work with extrusion sizes from 1FR to 34+ FR
  • Proprietary, durable carbide tipping dies
  • Modular “black box” tooling design
  • Store up to 256 recipes
  • Multi-stage heating capability for exacting catheter formation
  • Minimize operator variability with semi-automatic carriage
Universal Specs
  • RF Induction: 1.2 KW @400KHz solid state
  • Motion: Stepper with encoder
  • Force Control: Display only
  • Temperature Control: Display only
  • Air Actuation: Recipe-controlled proportional regulator
  • Power: 100-240VAC at 50/60Hz
  • Air: 100psi max. 5cfm
  • Interface: Touchscreen, PLC
  • Dimensions: 28” x 31”x 23” [from tabletop]
  • Weight: 100lb

Safety Features

  • Light curtains (optional)
  • Dual-touch sensors
  • E-stop
