Hot-Flo Heat Box

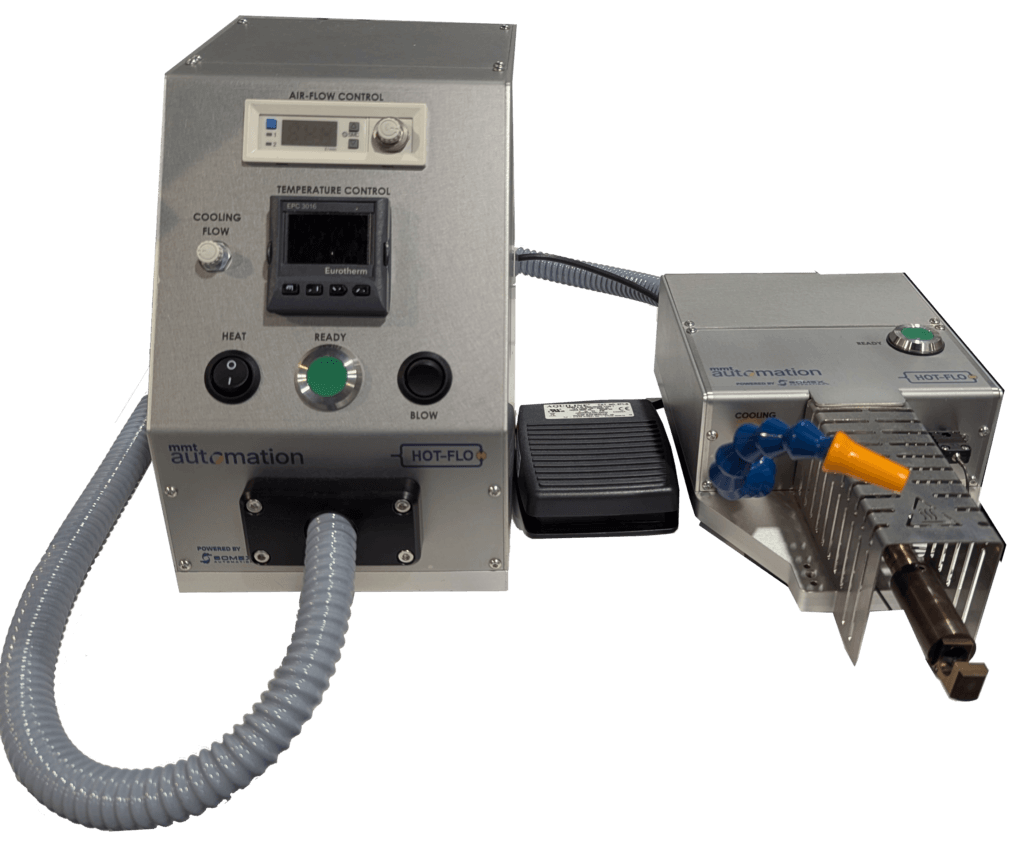

The Somex Automation Hot-Flo Heat Box is a benchtop Catheter Hot Air Nozzle System. The Heat Box features a digital readout of airflow, a ready lamp for temperature and airflow, and options for Enhanced Control & Monitoring of process parameters. It is available in two configurations: Compact and Umbilical.

Key Features
  •  Accurate Digital Air Flow Controller with adjustment for precise air delivery to the nozzle for greater product build repeatability.
  • Ready lamp to indicate the temperature & air flow are within set limits.
  • Options for adding an enhanced level of control & monitoring of process parameters by external systems.
  • High accuracy temperature control.
  • CE Marked.
  • Available in Compact configuration or Umbilical Nozzle configuration with remote-control enclosure.
  • Variety of heater design options with adjustable V-Groove Tooling to aid the product builder in locating the product in the nozzle for repeatable results.
  • Foot-operated cooling air blow nozzle.
  • Optional vacuum unit available.
  •  Air: Min 60psi – Max 125psi
  • Power: 110V AC, 60Hz or 230V AC, 50Hz
  • Nominal Current: 0.75kVA
  • Machine Footprint: Umbilical Configuration: 12” x 6” x 9” (300mm x 150mm x 227mm)
  • Machine Weight: 11lbs (5kg)
  • Temperature Range: Ambient – 700°F (370°C)
  • Air Flow Range: 15 – 64 SCFH (7-30L/min)
  • Air Pressure Range: 0 – 90psi (0 – 6 Bar)
