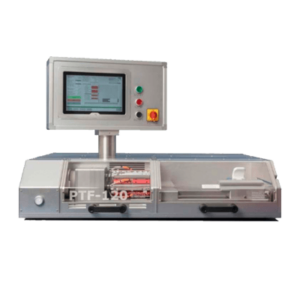

Pleating & Folding: PTF 120

The PTF-120 is a fully automated machine and can pleat and fold balloons with a length of approx. 100 mm. The balloon products are clamped on a stable product table with automatic positioning using stepper motors.

Play Video
Key Features
  • 10” color touch panel interface with parameter setting and recipe control.
  • Servo controlled zero gap fold head with stainless tool steel blades and high-wear resistant low friction coating.
  • Innovative design for quickly exchanging the pleater setup from 3- ,4- ,5- or 6-pleats.
  • The PTF-120 is built with a very high-quality benchmark resulting in a stable and robust design with minimal cost of ownership.
  • Easy to use user interface software with recipe control. Barcode scanners support as standard.
  • Fold head heating is standard and optionally the pleater modules can be fitted with a heating system.
  • The design is optimized for use in cleanrooms and can be very easily wiped and cleaned due to the smooth and closed surfaces
